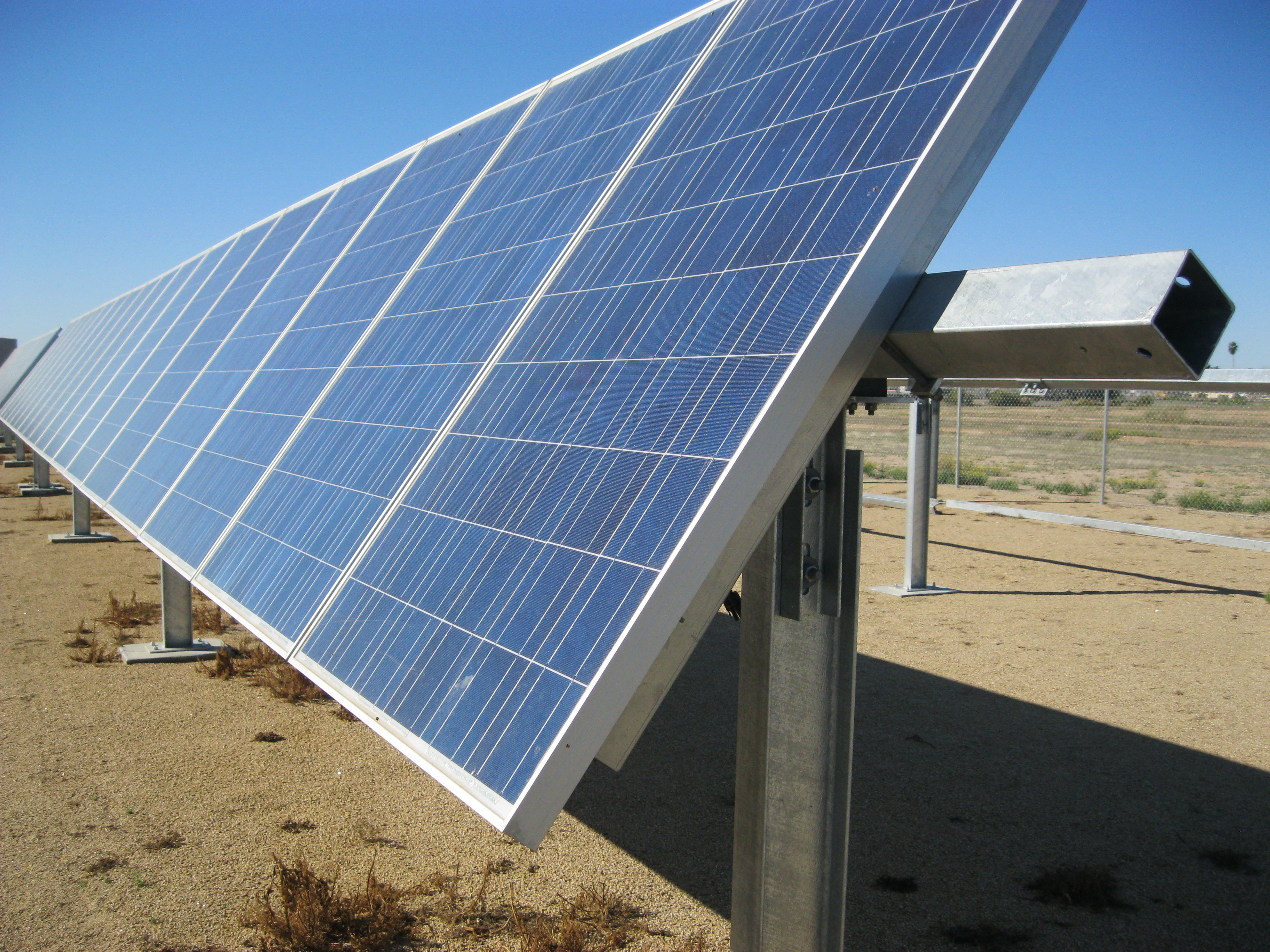

Single Axis Tracker Layout

Location: USA

Wattage: 2MWAC

Client: Gestamp Solar Steel/Gonvarri Steel Services

Design: March 2015

Inservice: April 2015

Project Description

Designed a standard 2MW Single Axis Tracker layout to be used for future clients to use as template to layout specific solar projects. The design included the layout of sixteen (16) tracker units arranged in a 4x4 block, power and communications for trackers, and DC wiring from modules to a 2MW inverter/transformer skid. The design also included road layout, fence requirements, tracker controls, conduit, wire, and trenching to meet NEC requirements. The design included evaluation of the number of trackers in a power block.
